Special-Purpose Test Rigs
Dynamic test solutions built for extreme conditions
Dedicated Test Bench Series
INOVA's dedicated test benches serve a wide range of industries, offering both standard configurations and fully customized designs to deliver precise, reliable testing solutions. With over 50 years of experience, we deeply understand the testing needs and challenges across sectors.

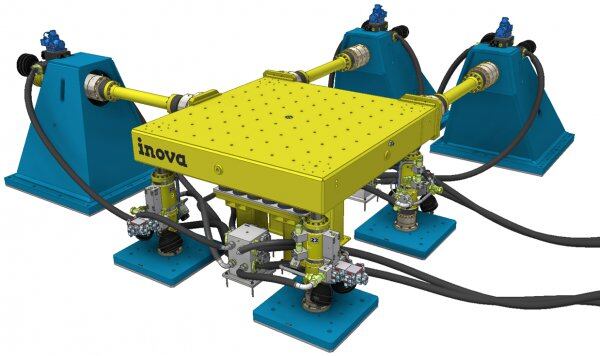

Vibration Table
Shake Tables
A comprehensive solution co-designed with leading European partners for automotive component testing and seismic simulation, delivering exceptional performance at a competitive price.
- Low environmental vibration, high energy efficiency
- Simple to operate and maintain
- Static pressure bearing tip component
- EU 3000 High-Speed Control Electronics

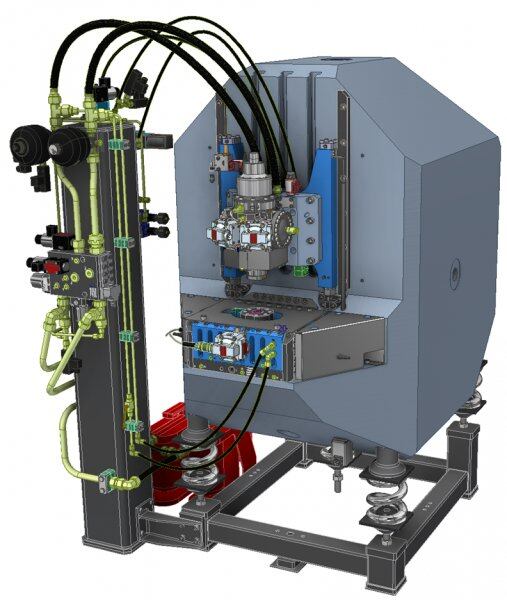

Elastomer Test Bench
Elastomer Test Rigs
Backed by over 40 years of engineering expertise, INOVA elastomer test systems nearly meet all testing application needs. Advanced components ensure superior specimen loading accuracy and result evaluation capabilities.
- Hydraulic, electric, dual-axis, or multi-axis configurations available
- Frequency up to 3,000 Hz
- Static and Dynamic Stiffness Testing
- Fatigue life assessment (10^7 cycles)

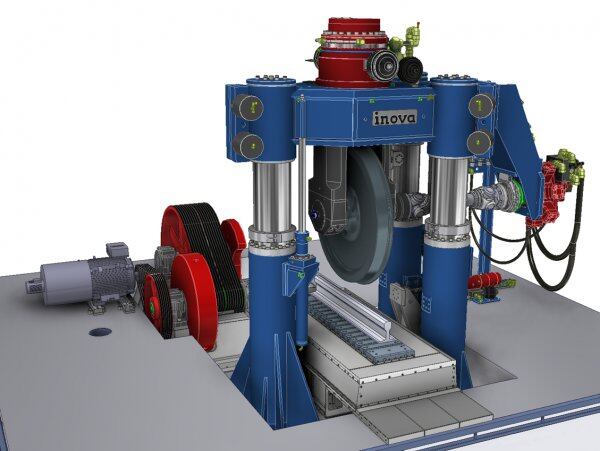

Rail Bogie and Wheelset Test Rig
Railway Bogie and Wheelset Test Rigs
INOVA's advanced test systems, developed in collaboration with leading global rail vehicle manufacturers, offer an efficient solution for bogie and wheelset testing under real-world operating conditions.
- INOVA Hydraulic Cylinders – Designed and Optimized for Specific Applications
- INOVA Adjustable Ball Joint - Zero Backlash, Polyamide Coated
- INOVA Control System – Supports Multi-Axis Loading Conditions
- Rich software modules: ITRM, real-time iteration, vibration module, and seismic simulation module

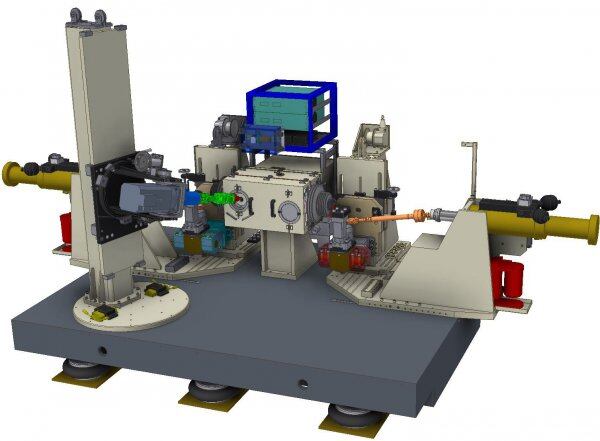

Steering Test System
Steering Test Systems
The INOVA steering test bench is used by global leaders like TRW and Volkswagen Group. It tests steering columns, electric/electro-hydraulic power steering systems, and actuators. It simulates extreme conditions from -40°C to 100°C and communicates via CAN/CAN FD/FlexRay interfaces.
- HIL Real-Time工况Simulation Testing
- EU3000 RTC Digital Control System
- CANbus and FlexRay Integration with REST Bus Simulation
- Extreme environment testing with temperature control chamber

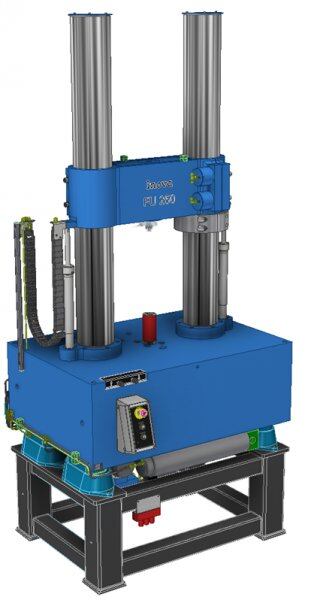

Shock Absorber Test Bench
Shock Absorber Test Rigs
As a leading supplier of advanced vibration damper test benches, INOVA has long been a trusted partner for global industry leaders. We provide solutions for static and dynamic characteristic testing and durability validation. Test specimens can be mounted vertically or in any orientation, with seamless integration into production lines and support for automated real-time evaluation.
- High-rated constant force and wide-speed-range testing capabilities
- INOVA Hydrostatic Bearing Hydraulic Actuator
- Dedicated Shock Absorber Software Module
- Multi-Industry Applications: Automotive, Rail Transit, and Aerospace

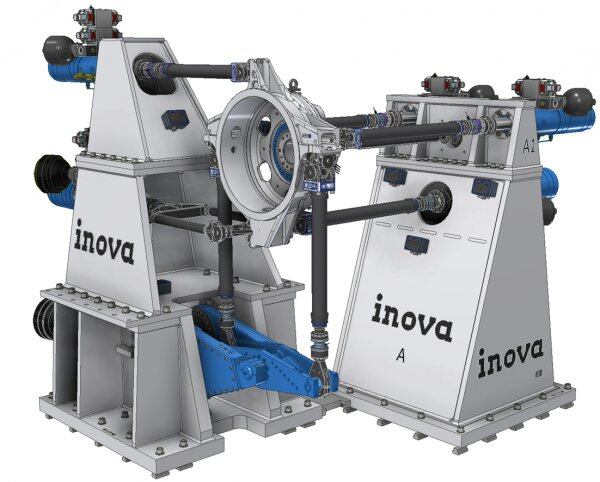

Vehicle and Axle Testing System
Vehicle and Axle Test Systems
INOVA partners with leading global automotive and motorcycle manufacturers to deliver a comprehensive portfolio of advanced axle testing solutions.
- INOVA Hydrostatic Bearing Hydraulic Actuator
- Zero-backlash spherical joint with polyamide coating
- EU3000 High-Speed Digital Control System
- Full Vehicle and Axle Durability Validation

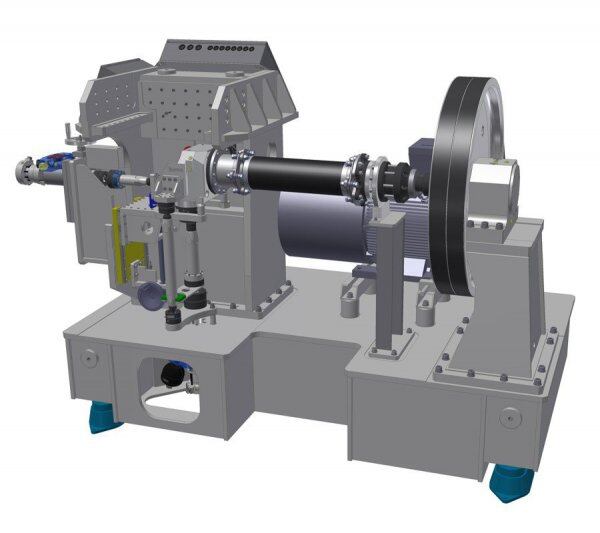

Torsion and Multi-axial Loading Testing Machine
Torsional and Multiaxial Loading Test Machines
Materials and components testing system for complex loading conditions, supporting combined tension-torsion and multi-axis linkage.
- Combined axial and torsional loading
- Maximum Torque 100 kNm
- Precise phase difference control
- Integrated Strain Measurement
Need a customized test plan?
In addition to standard test benches, INOVA offers fully customized test system development services. Our engineering team will design and deliver tailored test solutions based on your specific application requirements.
Learn about custom solutions
