Elastomer Test Rigs
Elastomer Test Bench
Product Overview
Backed by over 40 years of engineering expertise and a long-standing partnership with leading European automakers, INOVA's elastomer testing systems deliver industry-leading solutions that meet virtually any elastomer testing requirement.
Use Cases
Elastomer Static Stiffness and Dynamic Characteristics Testing | Fatigue Life and Durability Assessment
Key Benefits
INOVA Hydraulic Cylinder
Designed and optimized for high-frequency and lateral loads
INOVA Control System
Control loop frequency: 50 kHz
Elastomer Software Module
Supports extensive test definitions and direct evaluation
Industry
Mechanical Performance Sensing
Aerospace
shock absorber
Rail Transit
Heavy Equipment
Shipbuilding
Automotive Manufacturing
Power Engineering
Material Testing
Construction Engineering

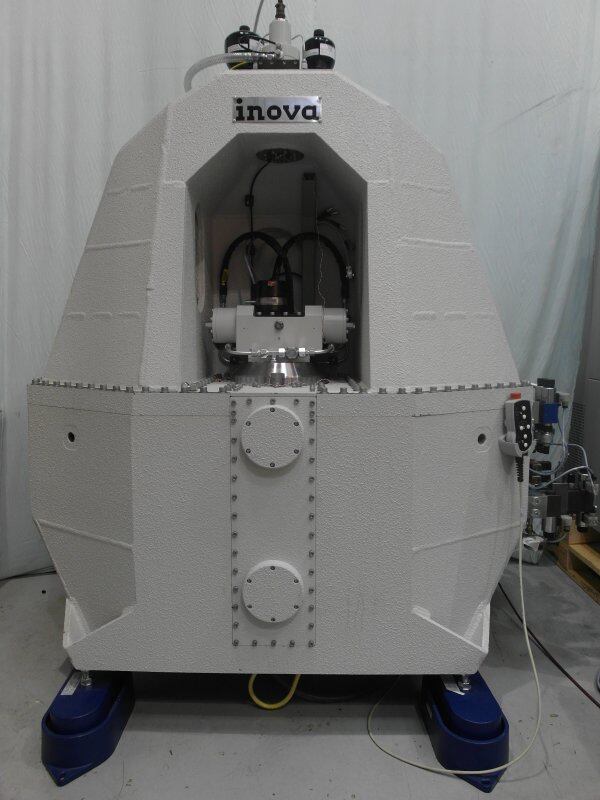

Elastomer Biaxial Testing Machine — 400 Hz
The INOVA Elastomer Testing System leverages advanced processes and technologies, including finite element optimization and modal analysis. Additionally, our solution is equipped with high-performance components meticulously designed by INOVA's laboratory to ensure superior specimen loading accuracy and result evaluation capabilities.
For greater flexibility, the INOVA Elastomer Testing System can be easily customized to meet your specific needs or seamlessly integrated with your existing production lines and databases.
Application Scope
- Dynamic Characterization of Elastomeric Test Specimens — INOVA ELAST Software Suite
- Elastomeric Specimen Durability Test – INOVA TestControl Core Software Package (for Cyclic Loading) and ITRM Software Package (for Time-Domain Signal Iteration)
- Measurement of Dynamic Characteristics Changes in Specimens During Long-Term Durability Testing — INOVA RealTimeMonitor and ElastMonitor Software Suite
Configuration Options
- Hydraulic Single-Axis Linear or Torsional Elasticity Test System – For Static and Dynamic Characterization, Up to 1,000 Hz
- Single-axis linear elastic testing system for dynamic characterization, up to 3,000 Hz
- Dual-Axis Elastomer Test System — For static and dynamic characterization, up to 800 Hz
- Multi-axis (up to 6 DOF) elastomer test system for durability testing and dynamic property measurement, with frequencies exceeding 100 Hz.
Advanced components developed and manufactured in-house by INOVA
- High-Speed Control Unit (100 kHz / 50 kHz)
- High-stiffness load-bearing frame
- Hydrostatic Bearing Actuator and Dual-Axis Test Rig
- Zero-backlash adjustable ball hinge and spring hinge
- Precision measurement system with dynamic correction for all measured values.
- Three software packages: one for basic operations, one for iterative testing, and one for elastomer-specific applications.
- Temperature Control Box
Get detailed technical documentation
For complete technical specifications, configuration options, or pricing for the elastomer testing machine, please contact our technical team.
